Let’s Plot 3: Base pair resolution NGS coverage plots (Part I)

bioinformatics
Let’s Plot
R
Author

David McGaughey

Published

February 7, 2018

(Re)edited: 2025-10-23

Load data

This is a departure from the previous installments, as we are loading in a very processed dataset. The reasons why are numerous:

  1. The original data is 330mb, compressed

  2. After loading (2 minutes on my quite fast computer) and uncompressing, it takes over 10GB of RAM on my computer

  3. The original data needed a severe amount of massaging to make it quickly usable:

    • Annotating with gene name
    • Identifying primary transcript for gene
    • Expanding range data into row-form*
  • mosdepth provides read depth as ranges. So instead of writing a row for each of the three billion+ base pairs, mosdepth collapses adjacent rows with identical read depth together. This is crucial for saving space, especially for exomes, which have huge stretches of zero coverage since only ~3% of the genome is targeted.

Curious?

If you want to see how I did the above, see Part 2. This post also has some cooler plots.

Data

dd_class.csv can be found here

library(tidyverse)
── Attaching packages ─────────────────────────────────────── tidyverse 1.3.2 ──
✔ ggplot2 3.4.0     ✔ purrr   1.0.1
✔ tibble  3.1.8     ✔ dplyr   1.1.0
✔ tidyr   1.3.0     ✔ stringr 1.5.0
✔ readr   2.1.3     ✔ forcats 1.0.0
── Conflicts ────────────────────────────────────────── tidyverse_conflicts() ──
✖ dplyr::filter() masks stats::filter()
✖ dplyr::lag()    masks stats::lag()
library(data.table)

Attaching package: 'data.table'

The following objects are masked from 'package:dplyr':

    between, first, last

The following object is masked from 'package:purrr':

    transpose
library(cowplot) # you may need to install this with install.packages('cowplot')
dd_class <- fread('~/git/Let_us_plot/003_coverage/dd_class.csv')

head(dd_class)
          Transcript Exon Number    Start Chr      End Read_Depth Strand
1: ENST00000020945.3           0 49831356   8 49831367        108      -
2: ENST00000020945.3           0 49831357   8 49831367        108      -
3: ENST00000020945.3           0 49831358   8 49831367        108      -
4: ENST00000020945.3           0 49831359   8 49831367        108      -
5: ENST00000020945.3           0 49831360   8 49831367        108      -
6: ENST00000020945.3           0 49831361   8 49831367        108      -
   ExonStart  ExonEnd  Name
1:  49831365 49831547 SNAI2
2:  49831365 49831547 SNAI2
3:  49831365 49831547 SNAI2
4:  49831365 49831547 SNAI2
5:  49831365 49831547 SNAI2
6:  49831365 49831547 SNAI2

How many genes are in this dataset?

dd_class$Name %>% unique() %>% length()
[1] 118

What genes are in here?

dd_class$Name %>% unique() %>% sort()
  [1] "ABCA4"    "ABCB6"    "AIPL1"    "ALDH1A3"  "ARL6"     "ATF6"
  [7] "ATOH7"    "BBIP1"    "BBS1"     "BBS10"    "BBS12"    "BBS5"
 [13] "BBS7"     "BBS9"     "BCOR"     "BMP4"     "CACNA1F"  "CACNA2D4"
 [19] "CASK"     "CDHR1"    "CEP290"   "CHD7"     "CNGB3"    "CNNM4"
 [25] "COL4A1"   "COX7B"    "CRX"      "CYP1B1"   "DCDC1"    "EDN3"
 [31] "EDNRB"    "ELP4"     "FKRP"     "FKTN"     "FOXC1"    "FOXC2"
 [37] "FOXE3"    "GDF3"     "GDF6"     "GNAT2"    "HESX1"    "HMGB3"
 [43] "HPS1"     "HPS3"     "HPS4"     "HPS5"     "HPS6"     "INPP5E"
 [49] "ISPD"     "KCNJ13"   "KCNV2"    "KIT"      "LAMB2"    "LHX2"
 [55] "LYST"     "LZTFL1"   "MAB21L2"  "MFRP"     "MITF"     "MKKS"
 [61] "MKS1"     "MLPH"     "MYO5A"    "NAA10"    "NDP"      "NPHP1"
 [67] "NRL"      "OCA2"     "OTX2"     "PAX2"     "PAX3"     "PAX6"
 [73] "PDE6C"    "PDE6H"    "PITPNM3"  "PITX2"    "PITX3"    "POMT1"
 [79] "POMT2"    "PROM1"    "PRPH2"    "PRSS56"   "RAB18"    "RAB27A"
 [85] "RAB3GAP1" "RAB3GAP2" "RARB"     "RAX"      "RAX2"     "RDH5"
 [91] "RET"      "RIMS1"    "RPGR"     "RPGRIP1"  "SDCCAG8"  "SEMA4A"
 [97] "SHH"      "SIX3"     "SIX6"     "SLC24A5"  "SLC25A1"  "SLC38A8"
[103] "SLC45A2"  "SNAI2"    "SNX3"     "SOX10"    "SOX2"     "SOX3"
[109] "STRA6"    "TENM3"    "TMEM98"   "TRIM32"   "TTC8"     "TTLL5"
[115] "UNC119"   "VAX1"     "VSX2"     "ZEB2"

How many data points (bases) per gene?

dd_class %>%
  group_by(Name) %>%
  summarise(Count=n())
# A tibble: 118 × 2
   Name    Count
   <chr>   <int>
 1 ABCA4    6804
 2 ABCB6    2527
 3 AIPL1    1159
 4 ALDH1A3  1550
 5 ARL6      569
 6 ATF6     2008
 7 ATOH7     457
 8 BBIP1     220
 9 BBS1     1773
10 BBS10    2172
# … with 108 more rows

How many exons per gene?

dd_class %>%
  select(Name, `Exon Number`) %>%
  unique() %>%
  group_by(Name) %>%
  summarise(Count = n())
# A tibble: 118 × 2
   Name    Count
   <chr>   <int>
 1 ABCA4      50
 2 ABCB6      19
 3 AIPL1       6
 4 ALDH1A3    13
 5 ARL6        7
 6 ATF6       16
 7 ATOH7       1
 8 BBIP1       2
 9 BBS1       17
10 BBS10       2
# … with 108 more rows

How many base pairs of ABCA4 (well, ABCA4 exons) is covered by more than 10 reads?

Base R style

# Grab the Read_Depth vector from the data frame filtered by ABCA4 values
depth_abca4 <- dd_class %>%
  filter(Name=='ABCA4') %>%
  pull(Read_Depth)
sum(depth_abca4 > 10)
[1] 6803

5 reads?

sum(depth_abca4 > 5)
[1] 6804

Let’s check all of the genes to see which are the worst covered

dd_class %>%
  group_by(Name) %>%
  summarise(Total_Bases = n(),
            LT5 = sum(Read_Depth < 5),
            LT10 = sum(Read_Depth < 10),
            Good = sum(Read_Depth >= 10),
            P5 = LT5 / Total_Bases,
            P10 = LT10 / Total_Bases) %>%
  arrange(-P10)
# A tibble: 118 × 7
   Name    Total_Bases   LT5  LT10  Good      P5     P10
   <chr>         <int> <int> <int> <int>   <dbl>   <dbl>
 1 BBIP1           220     0    61   159 0       0.277
 2 ISPD           1339     0    57  1282 0       0.0426
 3 CASK           2778     0    79  2699 0       0.0284
 4 NAA10           725     0    10   715 0       0.0138
 5 CNGB3          2436     0    18  2418 0       0.00739
 6 LYST          11400    13    66 11334 0.00114 0.00579
 7 PROM1          2601     0     8  2593 0       0.00308
 8 RET            3348     0     9  3339 0       0.00269
 9 CEP290         7456     0    18  7438 0       0.00241
10 SLC25A1         933     0     2   931 0       0.00214
# … with 108 more rows

We can visually display the data, also

dd_class %>%
  ggplot(aes(x=Read_Depth, group=Name)) +
  geom_density()

Hard to see what is going on, let’s make little plots for each gene

dd_class %>%
  ggplot(aes(x=Read_Depth, group=Name)) +
  facet_wrap(~Name) +
  geom_density()

##

Where are genes poorly covered?

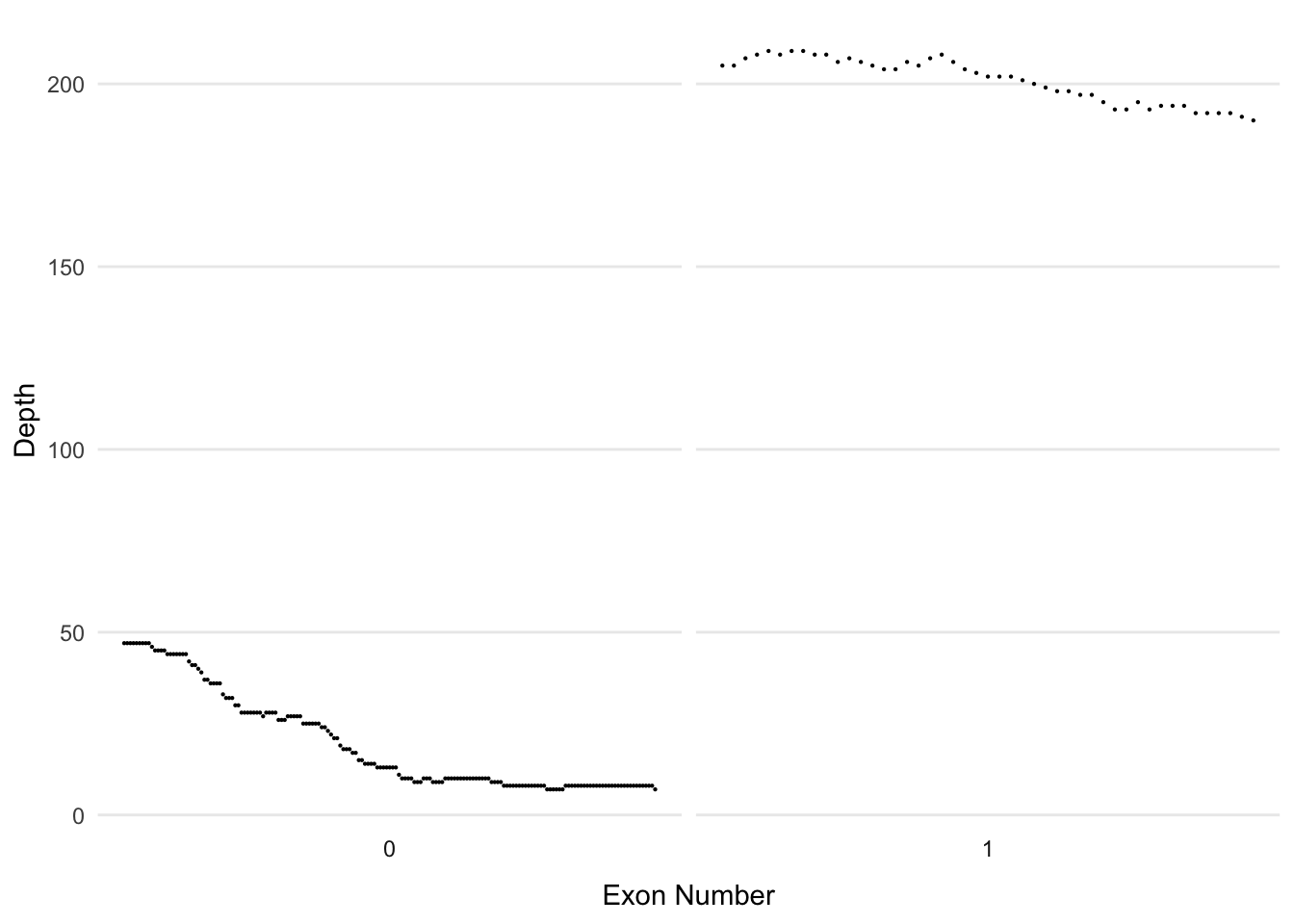

BBIP1

dd_class %>% filter(Name=='BBIP1') %>%
  ggplot(aes(x=Start, y=Read_Depth)) +
  facet_wrap(~`Exon Number`, scales = 'free_x', nrow=1, strip.position = 'bottom') +
  geom_point(size=0.1) + theme_minimal() +
  theme(axis.text.x=element_blank(),
        axis.ticks.x = element_blank(),
        panel.grid.minor = element_blank(),
        panel.grid.major.x = element_blank(),
        legend.position = 'none') +
  ylab('Depth') +
  xlab('Exon Number')

Make a coverage plot for many genes (This is advanced stuff!!!)

gene_list <- c('ABCA4', 'PITX2','VSX2','RPGR','SOX10')

# set a custom color that will work even if a category is missing
scale_colour_custom <- function(...){
  ggplot2:::manual_scale('colour',
                         values = setNames(c('darkred', 'red', 'black'),
                                           c('< 10 Reads','< 20 Reads','>= 20 Reads')),
                         ...)
}

plot_maker <- function(gene){
  num_of_exons <- dd_class%>% filter(Name==gene) %>% pull(`Exon Number`) %>% as.numeric() %>% max()
   # expand to create a row for each sequence and fill in previous values
  dd_class %>% filter(Name==gene) %>%
    mutate(`Exon Number`= factor(`Exon Number`,levels=0:num_of_exons)) %>%
    ggplot(aes(x=Start, y=Read_Depth)) +
    facet_wrap(~`Exon Number`, scales = 'free_x', nrow=1, strip.position = 'bottom') +
    geom_point(size=0.1) + theme_minimal() + scale_colour_custom() +
    theme(axis.text.x=element_blank(),
          axis.ticks.x = element_blank(),
          panel.grid.minor = element_blank(),
          panel.grid.major.x = element_blank(),
          legend.position = 'none') +
    ylab('Depth') +
    xlab(gene)
}

plots <- list()
for (i in gene_list){
  plots[[i]] <- plot_maker(i)
}

plot_grid(plotlist = plots, ncol=1)
devtools::session_info()
